Sign a request and validate the signature

To ensure the security of message transmission, the merchants or ISVs (independent software vendors) must properly execute message signing and signature validation.

Before you begin

Before performing message signing and signature validation, complete the following steps:

Create private key and public keys

Private keys must be securely stored on backend servers with appropriate access controls, as leakage can lead to significant loss.

copy
# 1. Generate private key
openssl genrsa -out client_private_key_php_dotnet.pem

# 2. If you are a Java developer, you need to convert the private key to PKCS8 format
openssl pkcs8 -topk8 -inform PEM -in client_private_key_php_dotnet.pem -outform PEM -nocrypt -out client_private_key_pkcs8.pem

# 3. Generate public key
openssl rsa -in client_private_key_php_dotnet.pem -pubout -out client_public_key_php_dotnet.pem

# 4. Generate private key suitable for Java
cat client_private_key_pkcs8.pem | grep -v "^\-" | tr -d "\n" | sed 's/%$//' > client_private_key_java.pem

# 5. Generate public key suitable for Java
cat client_public_key_php_dotnet.pem | grep -v "^\-" | tr -d "\n" | sed 's/%$//' > client_public_key_java.pem

Public key example:

copy
MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAp8NrCn0KW+saBb2voLX5cDVeQ/HaVquM3OCt12D7a30VutARr9P8qSVSE90IqUkmmkcpFSdf61yYOF+lAvGYLRrmxmIGjF9G1BVUvJJdfO/ZN8x5OS2+F7AclaLZHRfjZ/mIKkQIMUUcgUUNKgXv4SwxOkZcMAL2tFJsrTlwdciPLxcAzKqEgLpIHqN+BQdI1sDkfr5+q0IEA3B+fiVgRUeyeL0L0qSp3DBbj/iSuWXjd0uelLmUiMNdVle2TsnaXMBwG5jVXHmar96fZKuduJK5mrGo88AYQr0hjLTF3B45FYsRfWeBfmUjTRpJEhA91y9AdqEl8JsPvCfa32vzxQIDAQAB

Exchange public keys with Alipay

The merchant or ISV should send the generated public key to Alipay via email or other secure means, while retaining the private key for signing purposes. In return, Alipay will send its public key to the merchants or ISV using secure communication.

Sign a request

Each request sent to the Alipay server must comply with Alipay's data security transmission specifications. It is recommended to use the Alipay Open-SDK for handling and verifying the signature. Once the request is sent, the Alipay server will validate the signature to ensure the authenticity of the merchant or ISV and the integrity of the message content.


Construct the content to be signed

Take a request as an example, which includes the following properties:

  • HTTP URI WITH QUERY STRING: /amsin/commercial/certificate/accept
  • Client-Id: T_111222333
  • Request-Time: 2019-10-22T01:19:50+08:00
  • HTTPBODY: The following code sample describes the body format. For example:
copy
{
    "merchantId": "123456789",
    "requestId": "550e8400-e29b-41d4-a716-446655440000",
    "outTransId": "123456789_RENEWAL20250909105104279487",
    "entityId": "12345678900",
    "entityType": "phone",
    "transType": "transaction",
    "transDate": "2025-04-05T06:30:00Z",
    "transStatus": "Success",
    "tradeAmt": "{\"currency\":\"HKD\",\"value\":\"24800\"}",
    "extendInfo": "{\"changeCentFlag\":true,\"goodsInfoList\":[{\"goodsId\":\"123456789_RENEWAL20250909105104279487\",\"goodsCode\":\"RENEWAL\",\"goodsName\":\"\u8054\u901a\u5408\u7ea6\u7eed\u7ea6\",\"goodsPrice\":{\"currency\":\"HKD\",\"value\":\"24800\"}}]}"
}

By complying with the Syntax of content to be signed, the content to be signed is created as follows:

copy
POST /amsin/commercial/certificate/accept
T_111222333.2019-12-08T03:31:41-08:00.{
    "merchantId": "123456789",
    "requestId": "550e8400-e29b-41d4-a716-446655440000",
    "outTransId": "123456789_RENEWAL20250909105104279487",
    "transType": "transaction",
    "transDate": "2025-04-05T06:30:00Z",
    "transStatus": "Success",
    "tradeAmt": "{\"currency\":\"HKD\",\"value\":\"24800\"}",
    "extendInfo": "{\"changeCentFlag\":true,\"goodsInfoList\":[{\"goodsId\":\"123456789_RENEWAL20250909105104279487\",\"goodsCode\":\"RENEWAL\",\"goodsName\":\"\u8054\u901a\u5408\u7ea6\u7eed\u7ea6\",\"goodsPrice\":{\"currency\":\"HKD\",\"value\":\"24800\"}}]}"
}

Syntax of content to be signed

copy
<HTTP METHOD> <HTTP URI WITH QUERY STRING>
<Client-Id>.<Request-Time>.<HTTP BODY>

Field name

Description

HTTP-METHOD

The HTTP method, such as POST or GET.

HTTP URI WITH QUERY STRING

The {endpoint} portion of the URL. For example, if the URL is https://open.alipay.hk/amsin/commercial/certificate/accept, the value is /amsin/commercial/certificate/accept.

Client-Id

A unique client identifier, for example, T_111222333.

Request-Time

The time the request is sent, for example, 2019-10-22T01:19:50+08:00.

HTTPBODY

The request body.

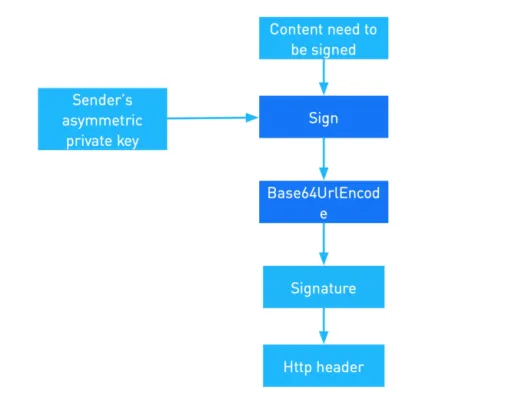

Calculate and generate the signature

A signature is generated by obtaining a hash value from the content to be signed using a hashing algorithm. This hash value is then encrypted to produce the signature.

Signature calculation:

Signature = base64UrlEncode(sha256withrsa(Content_To_Be_Signed))

Methods that are used:

  • sha256withrsa: The method to generate a digital signature for the content provided.
  • base64UrlEncode: The method to encode the generated digital signature.

Input parameters:

  • Content_To_Be_Signed: The content to be signed that is obtained in the previous step.

Sample generated signature:

copy
VrcC16qhJ%2FIBEVT6nyvjn9y%2FO9AU1ap%2BIH1xEsq8dyVt7h8KMM7YQtjQOrukHkiOicZPyGkB4ZlcQQy5K%2F%2BQzX0LGvVMHT3ijoJ4ZNzwqDAFN9Hfnlz5hdeYHVev3AS47gsbZb%2BCpeFwH4SOZxhXTJ7%2FWn4TExg9s5w5sgbl1P0cmbiYfYpkWBTCqvFzb4pqpXgrBUw%2FFWl%2F1GAN9o2q9uXGcgF35lkN%2F2kLBDhkYvE25Z86bQQCsKD%2FftKBqHioYT6P5t%2FSZPSO1dBKGr9LHybPY3YvySccjg94LRDAjs3Kw5BDFR2tyO6%2FHDItHLw49%2F2U6AM6WVRmuSE4D8eWpA%3D%3D

When sending a request, assemble the signature algorithm, the key version, and the signature into the HTTP request or response headers:

copy
"Content-Type": "application/json",
"Request-Time": "2019-07-12T12:08:56+05:30",
"client-id": "T_111222333",
"Signature": "algorithm=sha256withrsa,keyVersion=2,signature=VrcC16qhJ%2FIBEVT6nyvjn9y%2FO9AU1ap%2BIH1xEsq8dyVt7h8KMM7YQtjQOrukHkiOicZPyGkB4ZlcQQy5K%2F%2BQzX0LGvVMHT3ijoJ4ZNzwqDAFN9Hfnlz5hdeYHVev3AS47gsbZb%2BCpeFwH4SOZxhXTJ7%2FWn4TExg9s5w5sgbl1P0cmbiYfYpkWBTCqvFzb4pqpXgrBUw%2FFWl%2F1GAN9o2q9uXGcgF35lkN%2F2kLBDhkYvE25Z86bQQCsKD%2FftKBqHioYT6P5t%2FSZPSO1dBKGr9LHybPY3YvySccjg94LRDAjs3Kw5BDFR2tyO6%2FHDItHLw49%2F2U6AM6WVRmuSE4D8eWpA%3D%3D

Send a request

Construct a request by adding the Client-Id, Request-Time, Content-Type, and Signature fields to the request header. After a request is constructed, you can send the request.

Request header

copy
    "Content-Type": "application/json",
    "Request-Time": "2019-07-12T12:08:56+05:30",
    "client-id": "T_111222333",
    "Signature": "algorithm=sha256withrsa,keyVersion=2,signature=VrcC16qhJ%2FIBEVT6nyvjn9y%2FO9AU1ap%2BIH1xEsq8dyVt7h8KMM7YQtjQOrukHkiOicZPyGkB4ZlcQQy5K%2F%2BQzX0LGvVMHT3ijoJ4ZNzwqDAFN9Hfnlz5hdeYHVev3AS47gsbZb%2BCpeFwH4SOZxhXTJ7%2FWn4TExg9s5w5sgbl1P0cmbiYfYpkWBTCqvFzb4pqpXgrBUw%2FFWl%2F1GAN9o2q9uXGcgF35lkN%2F2kLBDhkYvE25Z86bQQCsKD%2FftKBqHioYT6P5t%2FSZPSO1dBKGr9LHybPY3YvySccjg94LRDAjs3Kw5BDFR2tyO6%2FHDItHLw49%2F2U6AM6WVRmuSE4D8eWpA%3D%3D

Request body

copy
{
    "merchantId": "123456789",
    "requestId": "550e8400-e29b-41d4-a716-446655440000",
    "outTransId": "123456789_RENEWAL20250909105104279487",
    "entityId": "12345678900",
    "entityType": "phone",
    "transType": "transaction",
    "transDate": "2025-04-05T06:30:00Z",
    "transStatus": "Success",
    "tradeAmt": "{\"currency\":\"HKD\",\"value\":\"24800\"}",
    "extendInfo": "{\"changeCentFlag\":true,\"goodsInfoList\":[{\"goodsId\":\"123456789_RENEWAL20250909105104279487\",\"goodsCode\":\"RENEWAL\",\"goodsName\":\"\u8054\u901a\u5408\u7ea6\u7eed\u7ea6\",\"goodsPrice\":{\"currency\":\"HKD\",\"value\":\"24800\"}}]}"
}

Handle a response

After you receive a response, you need to validate the signature of the response.

copy
{
  "invokeResult": "SUCCESS",
  "success": true
}

Validate the signature

Merchants or ISVs can verify responses from Alipay servers to confirm Alipay's authenticity and ensure message content has not been modified.

Signature verification consists of three steps: obtaining the key required for signature verification, obtaining the content to be verified, and verifying the signature.


1. Obtain the key required for signature verification

Retrieve the clientId and key version from the HTTP header. Use these to obtain the public key for verification. If the key version is not specified, the latest key is used by default.

2. Obtain the content to be verified

copy
<HTTP METHOD> <HTTP URI WITH QUERY STRING>
<Client-Id>.<Response-Time>.<HTTP BODY>

For the content format of signature verification, there are two differences from signing:

  • Response-Time: The time when Alipay responds (available in the HTTP header).
  • HTTP BODY: The JSON body of Alipay's response.

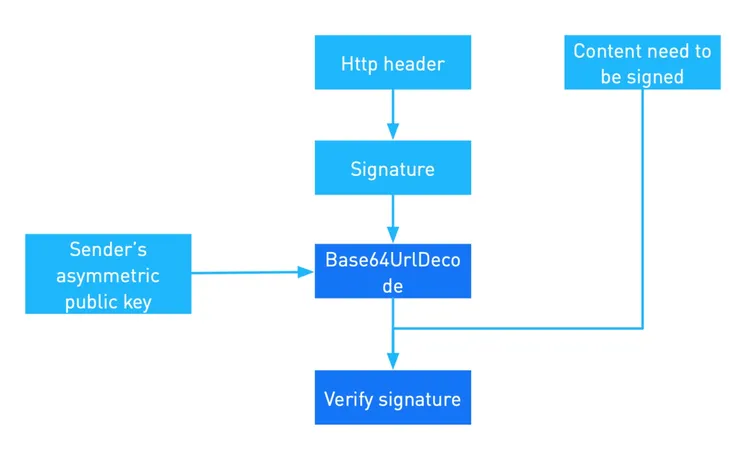

3. Verify the signature

Obtain the signature algorithm from the HTTP header. Verification involves obtaining the hash value of the content to be verified using a hash algorithm, decrypting the signature, and checking if the decrypted content matches the hash value.

Example (RSA256)

Decode the signature by using base64UrlDecode, then verify the signature by using the sender's public key and sha256withrsa.

Response header

copy
Content-Type:application/json; charset=UTF-8
response-time:2019-10-24T16:31:52-07:00
client-id:T_111222333
signature:algorithm=RSA256,keyVersion=2,signature=TgpjpAzwmA7aWDloDEitOpYv...

Response body

copy
{"invokeResult":"SUCCESS","success":true}

Content Example

copy
POST /amsin/commercial/certificate/accept
T_111222333.2019-10-22T01:19:50+08:00.{"invokeResult":"SUCCESS","success":true}

Validate signature using SDK

You can also utilize the SDK to verify the signature as follows:

copy
boolean isSuccess = SignatureTool.verify(content, signature, alipayPublicKey);
